Product Overview

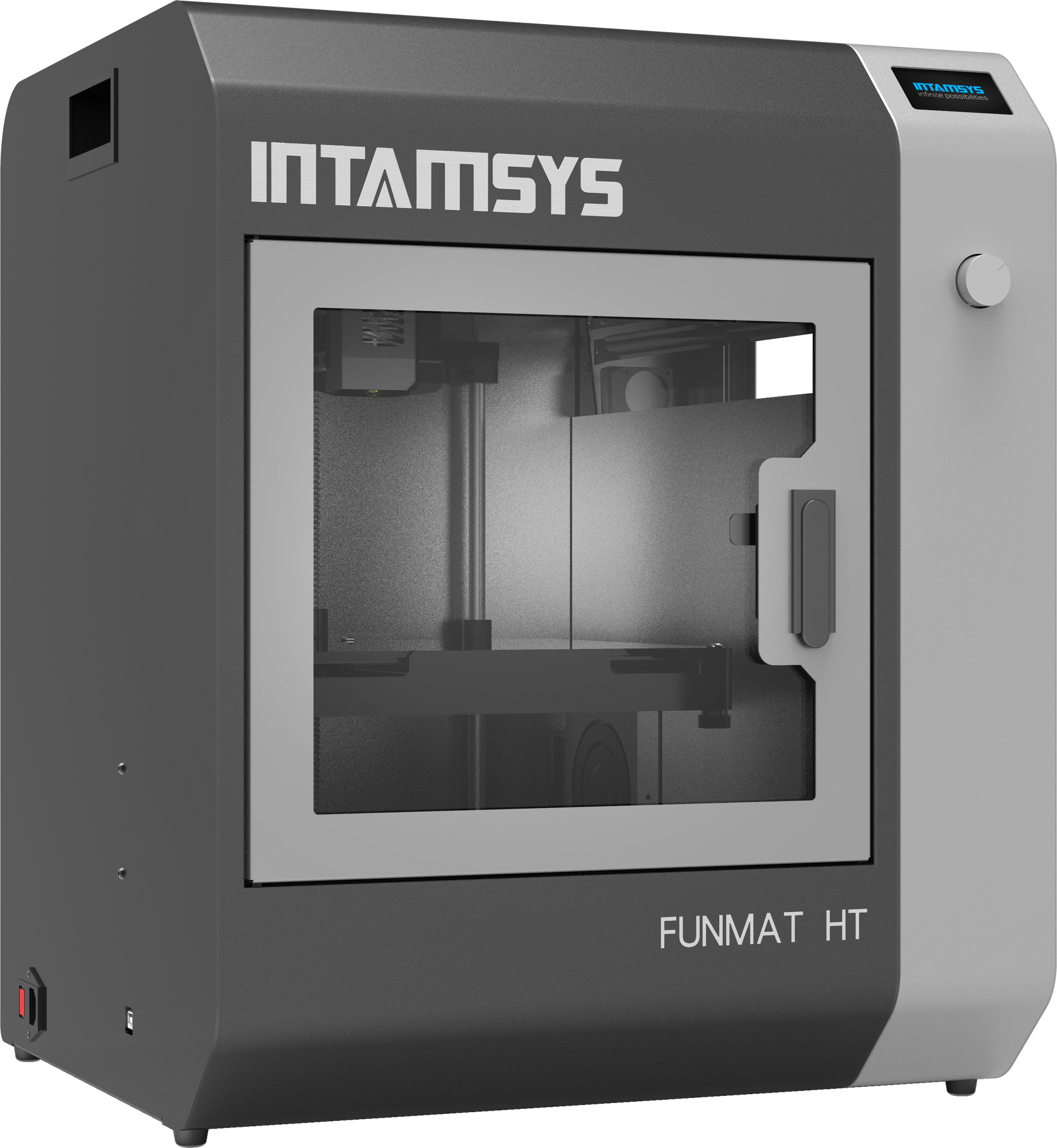

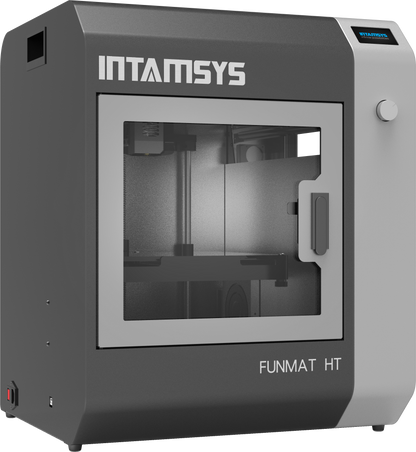

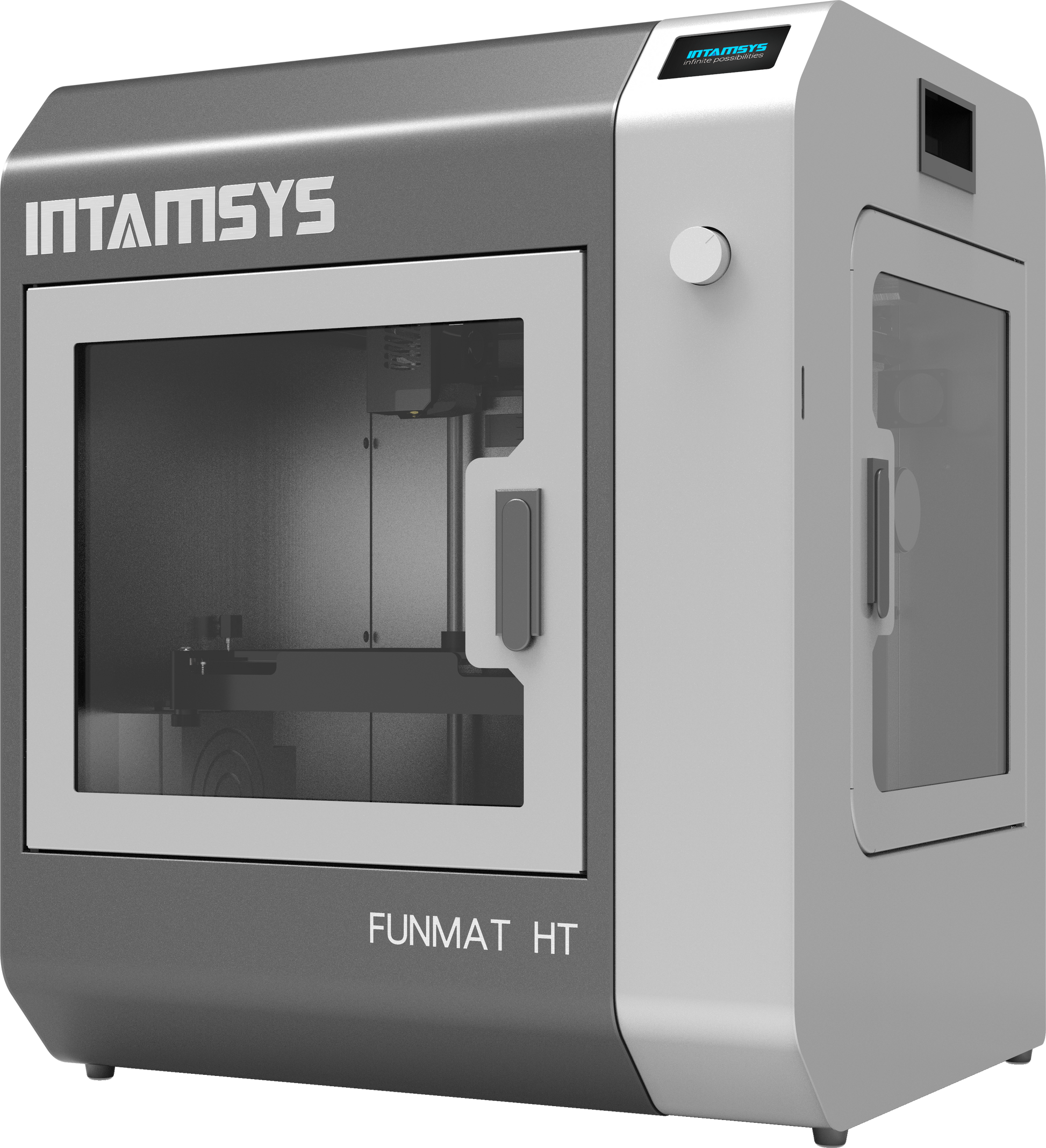

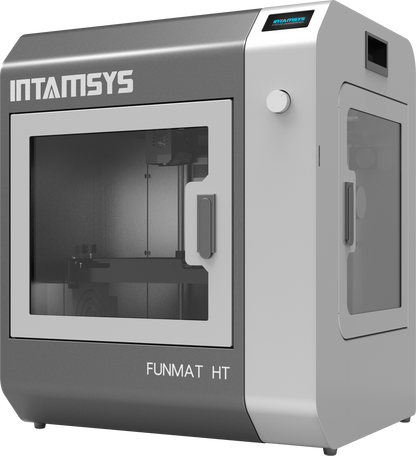

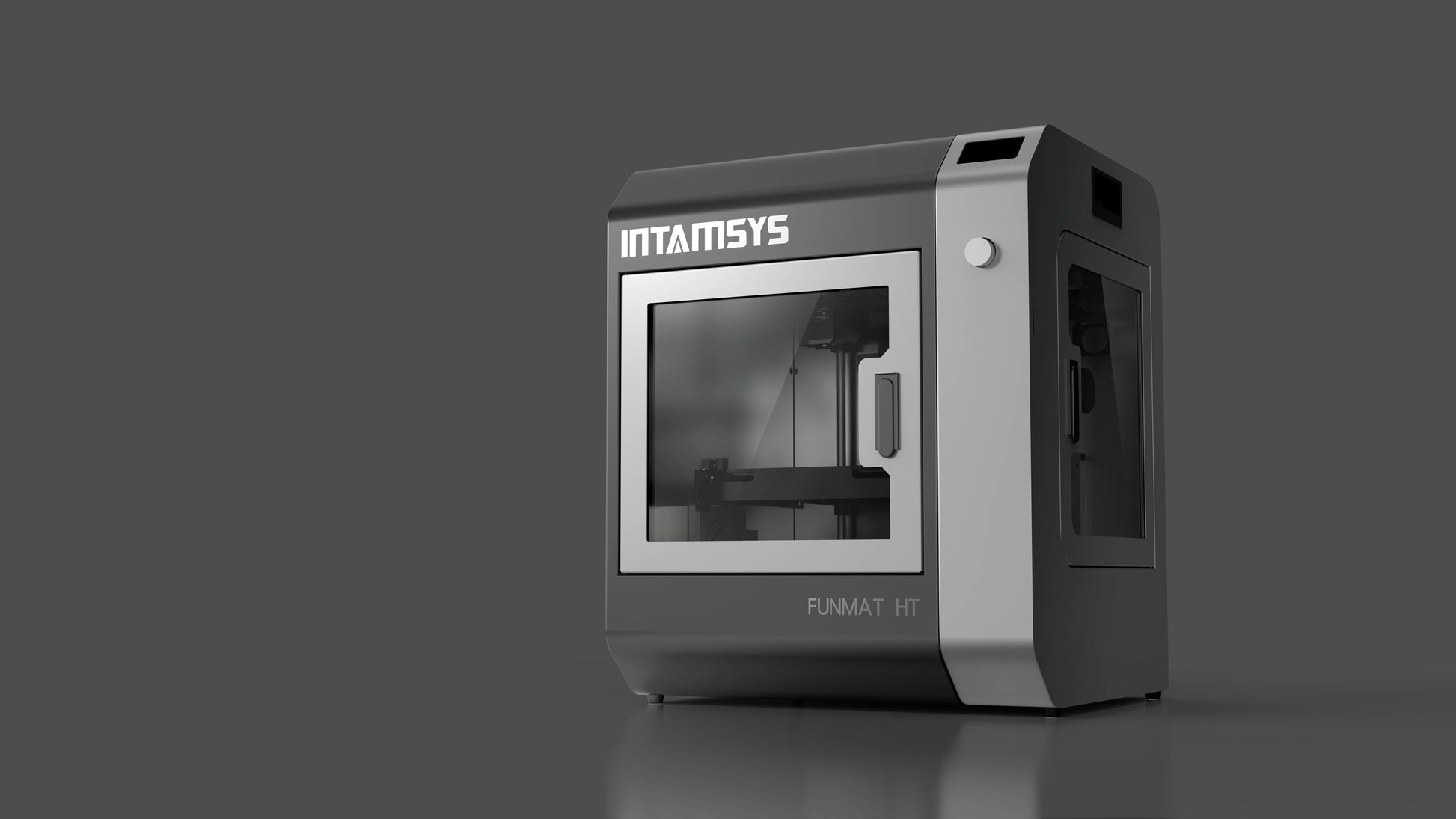

INTAMSYS FUNMAT HT High-Temperature Industrial 3D Printer
The INTAMSYS FUNMAT HT is a compact, professional high-temperature FFF 3D printer designed for engineers, researchers, manufacturers, universities, and product development teams working with advanced engineering and high-performance polymers.
A 450°C all-metal high-temperature extruder, 160°C heated build plate, and actively controlled 90°C chamber provide the thermal environment required to process materials ranging from conventional thermoplastics to demanding polymers such as PEEK and PEKK.
Its 260 × 260 × 260 mm (10.2 × 10.2 × 10.2 in) build volume provides space for functional prototypes, engineering components, tooling, jigs and fixtures, research parts, and low-volume end-use components while maintaining a compact machine footprint.
Designed for Professional Applications
The FUNMAT HT combines high-temperature material capability with a relatively compact professional platform, making it suitable for applications such as:
- Functional prototyping
- Jigs and fixtures
- Manufacturing aids
- Engineering development
- Research and development
- Automotive applications
- Aerospace applications
- High-performance polymer parts
Product Features
Advanced High-Temperature Thermal System
High-performance polymers such as PEEK require controlled temperatures throughout the printing environment. The FUNMAT HT combines a 450°C all-metal high-temperature extruder, actively controlled 90°C chamber, and 160°C heated build plate to help reduce thermal stress, improve interlayer bonding and dimensional stability, and minimize warping and cracking.
Wide Material Compatibility
Process high-performance polymers, engineering thermoplastics, composites, and conventional FFF materials on one platform.
Open-Material Platform
Supports compatible third-party materials in addition to INTAMSYS materials, providing greater flexibility in material selection.
260 × 260 × 260 mm Build Volume
The 260 × 260 × 260 mm (10.2 × 10.2 × 10.2 in) build area provides space for functional prototypes, engineering components, jigs, fixtures, tooling, research parts, and multiple smaller components in a single print job.
Fully Enclosed Heated Chamber
Maintains the controlled thermal environment required for high-performance thermoplastics.
Automatic Bed Leveling
Automatic and manual leveling options simplify setup and calibration.
Reusable Ceramic Glass Build Plate
Ceramic glass build surface with magnetic fixation.
Filament Runout Detection
Built-in detection alerts the operator when filament is depleted during printing.
Power Outage Recovery
Helps protect longer print jobs from unexpected power interruptions.
Camera Monitoring
Built-in camera provides visibility into print progress.
Full-Color Touchscreen
Integrated touchscreen provides convenient on-machine control.
USB & SD Card Connectivity
Transfer print files and manage jobs using USB or SD card connectivity.
Compatible Materials
High-Performance Materials
The FUNMAT HT's controlled thermal architecture enables processing of materials that are difficult to print reliably on conventional desktop FFF systems. Its open-material capability supports a broad range of high-performance, engineering, composite, and general-purpose thermoplastics.
High-Performance Polymers
- PEEK
- PEEK-CF
- PEEK-GF
- PEKK
Engineering & Composite Materials
- PPS
- PPA-CF
- PPA-GF
- PC
- PA / Nylon
- PA-CF
- PA6/66
- PA12-CF
- ABS
- ASA
General-Purpose Materials
- PLA
- Other compatible FFF materials
Easy, Reliable Operation
Professional Capability Without an Overly Complicated Workflow
The FUNMAT HT incorporates features designed to make high-temperature printing easier to manage, including:
- Automatic and manual bed leveling
- Filament runout warning
- Power outage recovery
- Camera monitoring
- 3.2-inch touchscreen
- Ceramic glass build plate with magnetic fixation
- High-performance standalone motor driver
- INTAMSUITE NEO slicing software
Technical Specifications
| Specification | FUNMAT HT |
|---|---|
| Printing Technology | FFF (Fused Filament Fabrication) |
| Build Volume | 260 × 260 × 260 mm / 10.2 × 10.2 × 10.2 in |
| Number of Nozzles | 1 |
| Maximum Nozzle Temperature | 450°C / 842°F |
| Maximum Build Plate Temperature | 160°C / 320°F |
| Maximum Chamber Temperature | 90°C / 194°F |
| Filament Diameter | 1.75 mm |
| Layer Thickness | Approx. 0.05–0.4 mm |
| Print Speed | Approx. 30–200 mm/s* |
| XY Positioning Accuracy | Approx. 0.025 mm |
| Z Positioning Accuracy | Approx. 0.0025 mm |
| Default Nozzle Diameter | 0.4 mm |
| Optional Nozzle Diameters | 0.25 / 0.6 / 0.8 mm |
| Bed Leveling | Automatic & Manual |
| Build Plate | Ceramic Glass with Magnetic Fixation |
| Build Chamber | Fully Enclosed |
| Connectivity | USB, SD Card |
| Display | Full-Color Touchscreen |
| Slicing Software | INTAMSUITE |
| Printer Dimensions | 543 × 501 × 645 mm / 21.3 × 19.7 × 25.4 in |
| Printer Weight | 63 kg / 139 lb |
| Maximum Power | 1200 W |
Actual print speed varies depending on material, part geometry, nozzle diameter, layer height, and process requirements.
Software & Compatibility
INTAMSUITE NEO
The FUNMAT HT works with INTAMSUITE NEO, INTAMSYS's slicing software.
Supported 3D file formats listed by INTAMSYS include:
STL • 3MF • OBJ • STEP • IGES
Setup & Resources
Official INTAMSYS Resources
Access official INTAMSYS documentation for installation, operation, printing, and technical support:
- FUNMAT HT User Manual
- FUNMAT HT Quick Start Guide
- FUNMAT HT Printing Process Guide
- FUNMAT HT Service Guide
Before Your First Print
For high-performance materials such as PEEK and PEKK, proper material preparation, temperature settings, and machine configuration are important for achieving consistent print quality. Refer to the official INTAMSYS material and process guidance for recommended settings.
